Door seals and alignment on Sub-Zero built-ins and columns

Of the four things that reliably kill built-in refrigeration in Clay County, the door is the cheapest to fix and the one people put off longest. It rarely presents as a door problem. It presents as frost, or a warm compartment, or an electricity bill that has crept up, and the door only comes up when a technician puts a piece of paper against the seal.

What a failed seal actually costs you

A gasket that no longer seals does not let a lot of air in at once. It lets a little in continuously. In a Florida kitchen that air is warm and carrying a great deal of moisture, so the cabinet is being asked to remove heat and water around the clock, on top of its actual job.

The consequences follow in order. The compressor runs longer. The evaporator frosts faster than the defrost schedule expects. The defrost cycle runs more often, which warms the compartment more often, which is how you end up with a slab of ice in a bin that used to hold loose cubes. Humidity in the fresh-food side goes up and produce goes off early. Meanwhile the household concludes the ice maker has failed and the refrigerator is on its way out.

Replacing a gasket is not glamorous work. It is, quite often, the whole repair.

Gasket, hinge, panel, or level

These get conflated, and they are four separate faults.

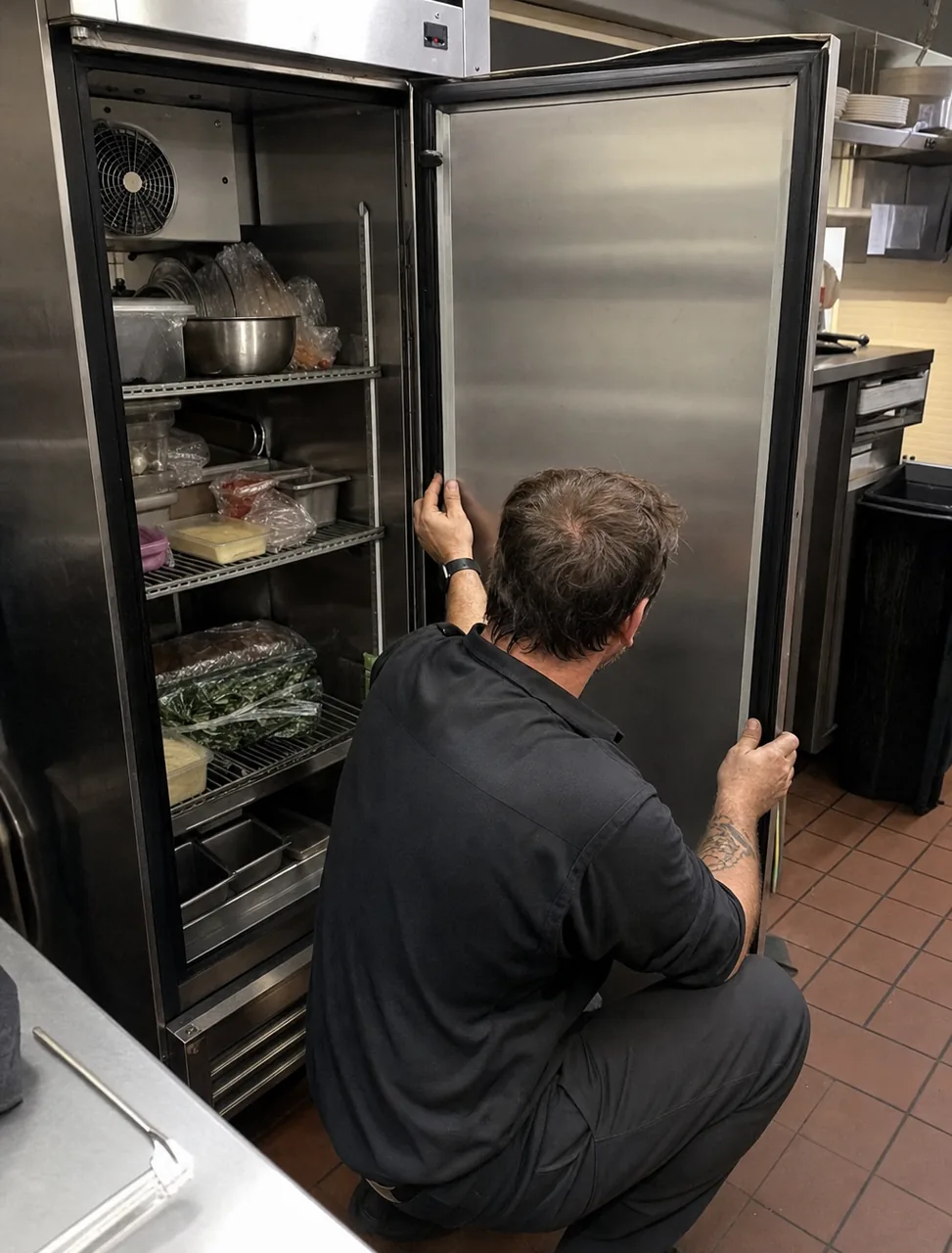

The gasket is the part that hardens, cracks or takes a permanent set. Sub-Zero door seals are magnetic; a gasket can look perfectly intact and still have lost enough of its pull to leave a gap you cannot see. The paper test around the whole perimeter is quick and tells you where the gap is, which matters, because a leak at the hinge side means something different from a leak at the handle side.

The hinge carries a door that is heavier than it looks — more so on integrated units where a solid custom panel and its hardware are hanging off the same mechanism. Wear here shows up as a door that drops slightly, so the seal is good at the top and open at the bottom. Adjusting a hinge and re-hanging the door is often what is needed, not a new seal.

The panel. In Orange Park’s newer kitchens, and in nearly every remodel we see in Eagle Harbor and Oakleaf, the refrigeration is panel-ready with cabinetry to match. Those panels are made by the cabinet shop, not the appliance maker, and their weight and mounting vary. A panel that is heavier than the door was set up for will pull the alignment out within a couple of years.

Level. A built-in that has shifted, or that sits on flooring installed after it, may no longer be plumb. Doors on these units rely on being hung true to swing closed the last inch on their own. If the cabinet is out, no gasket will fix it.

The retrofit problem in older Orange Park houses

The older streets near the river have kitchens that predate built-in refrigeration by decades. When a column or a built-in goes into an opening that was cut to fit rather than designed to fit, tolerances get tight. We find units with insufficient clearance at the hinge side, doors that foul cabinet trim on their swing, and openings that are out of square by enough to matter. None of that is the appliance’s fault, and none of it is fixed by parts. It is fixed by adjustment, and occasionally by a frank conversation with a cabinet maker.

The visit

Flat diagnostic fee, credited toward the repair. If the fix is an adjustment rather than a part, we will tell you that and you will pay less. Written estimate before anything is ordered, genuine OEM seals, 90 days on labour and 365 days on parts.
